Chapter 21 Update Diary Entries
| Problems covered in this chapter |
|

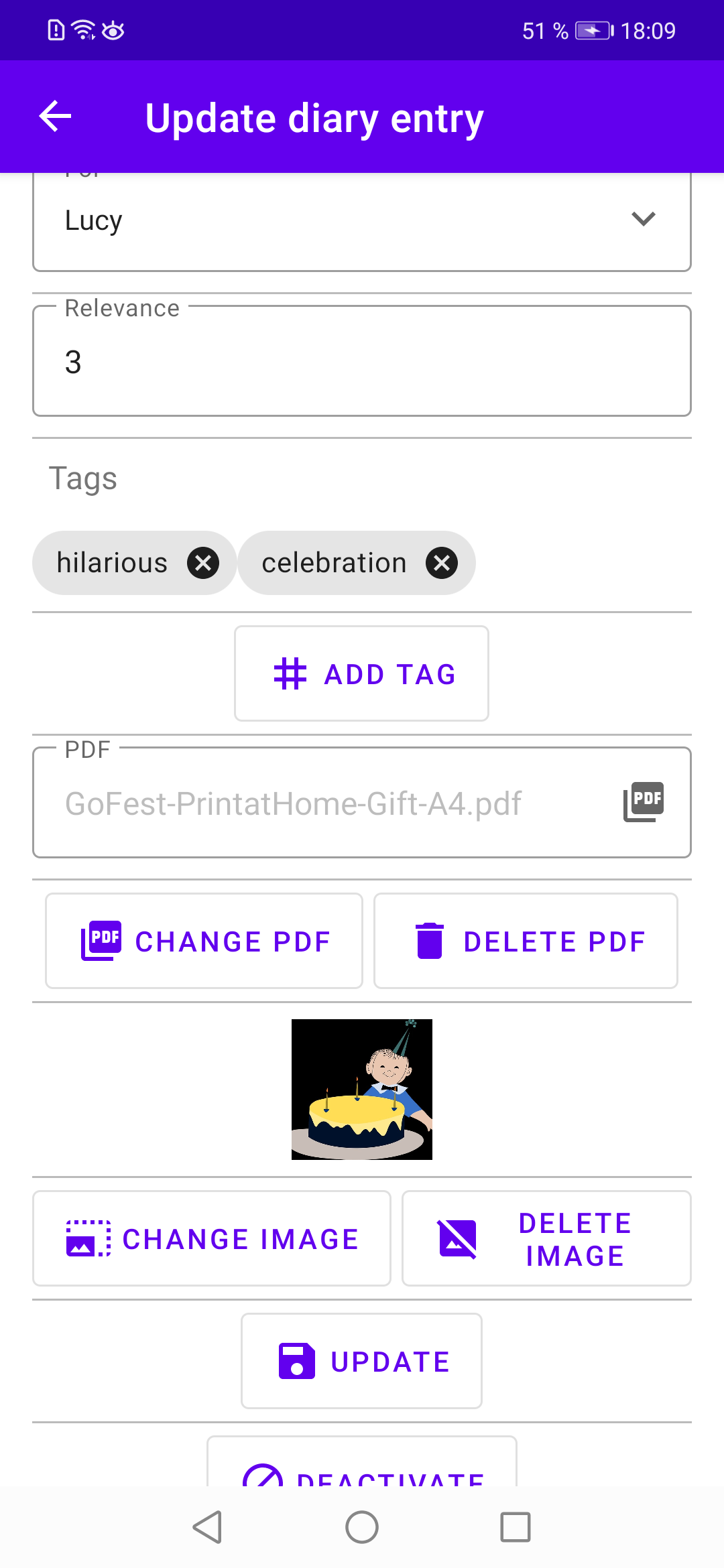

In this chapter we cover updating diary entries. In the last chapter we enabled the user to add a PDF to diary entries. These (optional) PDF files are stored in the app’s internal storage. In order to display the PDF contents of such a file, we need to first get the file’s URI. For this purpose we add a FileProvider to our AndroidManifest.xml file:
21.1 AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<application
android:allowBackup="true"
android:dataExtractionRules="@xml/data_extraction_rules"
android:fullBackupContent="@xml/backup_rules"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/Theme.CrudDiary"
tools:targetApi="31">
<activity
android:name=".MainActivity"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<provider
android:name="androidx.core.content.FileProvider"
android:authorities="${applicationId}.provider"
android:exported="false"
android:grantUriPermissions="true">
<meta-data
android:name="android.support.FILE_PROVIDER_PATHS"
android:resource="@xml/provider_paths" />
</provider>
</application>
</manifest>
As you can see in the above provider section, we also have to add a file called provider_paths.xml to our xml folder:
21.2 provider_paths.xml
<?xml version="1.0" encoding="utf-8"?>
<paths>
<cache-path
name="cached_files"
path="." />
<files-path
name="images"
path="." />
</paths>
Next we have to extend our BaseViewModel.kt:
21.3 BaseViewModel.kt
package app.gedama.tutorial.cruddiary.viewmodel
import android.content.Context
import android.graphics.Bitmap
import android.net.Uri
import android.provider.OpenableColumns
import android.util.Log
import androidx.lifecycle.LiveData
import androidx.lifecycle.MutableLiveData
import androidx.lifecycle.ViewModel
import app.gedama.tutorial.cruddiary.GlobalAppStore
import java.io.ByteArrayOutputStream
import java.io.File
import java.util.Date
abstract class BaseViewModel: ViewModel() {
val TAG = this::class.simpleName
val _navigateToList = MutableLiveData(false)
val navigateToList: LiveData<Boolean>
get() = _navigateToList
val _navigateToAddItem = MutableLiveData(false)
val navigateToAddItem: LiveData<Boolean>
get() = _navigateToAddItem
val _navigateToEditItem= MutableLiveData<Long?>()
val navigateToEditItem: LiveData<Long?>
get() = _navigateToEditItem
val _insertSuccess = MutableLiveData<Boolean?>(null)
val insertSuccess: LiveData<Boolean?>
get() = _insertSuccess
val _deactivateSuccess = MutableLiveData(false)
val deactivateSuccess: LiveData<Boolean>
get() = _deactivateSuccess
protected val _doValidation = MutableLiveData<Boolean>(false)
val doValidation: LiveData<Boolean>
get() = _doValidation
private val _oldImage = MutableLiveData<String>("")
val oldImage: LiveData<String>
get() = _oldImage
private val _oldPdf = MutableLiveData<String>("")
val oldPdf: LiveData<String>
get() = _oldPdf
var imageBitmap: Bitmap? = null
var defaultImage = true
var pdfFileName: String = ""
var _pdfUri = MutableLiveData<Uri?>()
val pdfUri: LiveData<Uri?>
get() = _pdfUri
fun addItem() {
_navigateToAddItem.value = true
}
fun onNavigatedToList() {
_navigateToList.value = false
}
fun onItemClicked(itemId: Long) {
_navigateToEditItem.value = itemId
}
fun onItemAddNavigated() {
_navigateToAddItem.value = false
}
fun onItemEditNavigated() {
_navigateToEditItem.value = null
}
fun onValidatedAndUpdated() {
_doValidation.value = false
}
fun setOldImage(oi: String) {
_oldImage.value = oi
}
fun setOldPdf(op: String) {
_oldPdf.value = op
}
fun setPdfUri(newPdfUri: Uri?) {
_pdfUri.value = newPdfUri
}
fun writeImage(filenameprefix: String): String {
val currentTimeInMillis = System.currentTimeMillis()
val fileName = GlobalAppStore.APP_FILEPATH_PREFIX + filenameprefix + currentTimeInMillis + ".jpg"
val stream = ByteArrayOutputStream()
imageBitmap!!.compress(Bitmap.CompressFormat.JPEG, 100, stream)
val bitmapdata: ByteArray = stream.toByteArray()
val context = GlobalAppStore.appCtx
context!!.openFileOutput(fileName, Context.MODE_PRIVATE).use {
it.write(bitmapdata)
}
return fileName
}
fun writePdf(filenameprefix: String): String {
val currentTimeInMillis = System.currentTimeMillis()
val fileName = GlobalAppStore.APP_FILEPATH_PREFIX + filenameprefix + currentTimeInMillis + ".pdf"
val context = GlobalAppStore.appCtx
val inputStream = context!!.contentResolver.openInputStream(pdfUri.value!!)
val fos = context.openFileOutput(fileName, Context.MODE_PRIVATE)
fos.write(inputStream!!.readBytes())
inputStream.close()
return fileName
}
fun getFilenameFromUri(uri: Uri) : String {
var fn = "file.pdf"
GlobalAppStore.appCtx!!.contentResolver.query(uri, null, null, null, null)?.use { cursor ->
/*
* Get the column indexes of the data in the Cursor,
* move to the first row in the Cursor, get the data,
* and display it.
*/
val nameIndex = cursor.getColumnIndex(OpenableColumns.DISPLAY_NAME)
val sizeIndex = cursor.getColumnIndex(OpenableColumns.SIZE)
cursor.moveToFirst()
fn = cursor.getString(nameIndex)
Log.d(TAG,"Real file name: ${fn}")
Log.d(TAG,"File size: ${cursor.getLong(sizeIndex).toString()}")
}
// fn = File("" + Uri.parse(pdfUri.value!!.lastPathSegment)).name
Log.d(TAG,"Obtained filename: $fn")
return fn
}
private fun deleteOldImage(filename: String) {
val context = GlobalAppStore.appCtx
val file = File(context!!.filesDir, filename)
val result = file.delete()
Log.d(TAG, "Result from deleting $filename: $result")
}
fun checkNewImagePath(filenameprefix: String): String? {
var newValue: String? = null
// handle several cases
if ( oldImage.value!!.isNotBlank() && defaultImage ) {
// a former image was deleted
deleteOldImage(oldImage.value!!)
newValue = ""
} else if ( oldImage.value!!.isNotBlank() && imageBitmap != null ) {
// a former image was replaced by a new one
deleteOldImage(oldImage.value!!)
newValue = writeImage(filenameprefix)
} else if ( oldImage.value!!.isBlank() && imageBitmap != null ) {
// a new image was added
newValue = writeImage(filenameprefix)
}
return newValue
}
fun checkNewPdfPath(filenameprefix: String): String? {
var newValue: String? = null
// handle several cases
if ( oldPdf.value!!.isNotBlank() && pdfUri.value == null ) {
// a former PDF was deleted
deleteOldPdf(oldPdf.value!!)
newValue = ""
} else if ( oldPdf.value!!.isNotBlank() && pdfUri.value != null ) {
// a former PDF was replaced by a new one
deleteOldPdf(oldPdf.value!!)
newValue = writePdf(filenameprefix)
} else if ( oldPdf.value!!.isBlank() && pdfUri.value != null ) {
// a new PDF was added
newValue = writePdf(filenameprefix)
}
return newValue
}
fun deleteOldPdf(filename: String) {
val context = GlobalAppStore.appCtx
val file = File(context!!.filesDir, filename)
val result = file.delete()
Log.d(TAG, "Result from deleting $filename: $result")
}
open fun updateEntryDate(date: Date) {
// to be overridden in view models with a date property
}
open fun updateEntryAfterValidation() {
// to be overridden by all view models that do validation
}
}
We also have to extend our BaseFragment.kt class:
21.4 BaseFragment.kt
package app.gedama.tutorial.cruddiary.fragment
import android.app.Activity
import android.content.Intent
import android.graphics.Bitmap
import android.graphics.BitmapFactory
import android.net.Uri
import android.os.Build
import android.speech.RecognizerIntent
import android.util.Log
import android.view.View
import android.widget.AdapterView
import android.widget.ArrayAdapter
import android.widget.Button
import android.widget.CheckBox
import android.widget.ImageView
import android.widget.LinearLayout
import android.widget.Spinner
import android.widget.TableRow
import android.widget.Toast
import androidx.activity.result.ActivityResult
import androidx.activity.result.ActivityResultLauncher
import androidx.activity.result.contract.ActivityResultContracts
import androidx.appcompat.app.AlertDialog
import androidx.core.content.FileProvider
import androidx.core.graphics.drawable.toBitmap
import androidx.core.view.isInvisible
import app.gedama.tutorial.cruddiary.R
import androidx.core.view.isVisible
import androidx.fragment.app.Fragment
import androidx.lifecycle.LiveData
import androidx.lifecycle.lifecycleScope
import app.gedama.tutorial.cruddiary.GlobalAppStore
import app.gedama.tutorial.cruddiary.data.Spinnable
import app.gedama.tutorial.cruddiary.ui.formfields.FormFieldText
import app.gedama.tutorial.cruddiary.ui.formfields.validate
import app.gedama.tutorial.cruddiary.viewmodel.BaseViewModel
import com.google.android.material.button.MaterialButton
import com.google.android.material.floatingactionbutton.FloatingActionButton
import com.google.android.material.textfield.TextInputEditText
import kotlinx.coroutines.launch
import java.io.File
import com.github.dhaval2404.imagepicker.ImagePicker
import com.google.android.material.textfield.TextInputLayout
abstract class BaseFragment: Fragment() {
val TAG = this::class.simpleName
fun saveToUpdateButton(saveButton: Button) {
saveButton.text = resources.getString(R.string.update_button)
}
fun setDeactivateButton(deactivateButton: MaterialButton, viewModelFunc: () -> Unit ) {
deactivateButton.setOnClickListener {
val builder = AlertDialog.Builder(this.requireContext())
builder.setTitle(resources.getText(R.string.inactivity_safety_dialog_title))
builder.setMessage(resources.getText(R.string.inactivity_safety_check))
builder.setPositiveButton(R.string.yes) { _, _ ->
viewModelFunc()
}
builder.setNegativeButton(R.string.no) { _, _ ->
// do nothing, but we need this statement to show the No-Button
}
builder.show()
}
}
fun setInactivityButton(inactive: Boolean, deactivateButton: MaterialButton, checkBoxInactive: CheckBox) {
if ( inactive ) {
deactivateButton.visibility = View.GONE
checkBoxInactive.isVisible = true
}
}
fun activateAddFAB(viewModelFunc: () -> Unit ) {
val fab = this.requireActivity().findViewById<FloatingActionButton>(R.id.add_floating_action_button)
fab.isVisible = true
fab.setOnClickListener { viewModelFunc() }
}
fun deactivateAddFAB() {
val fab = this.requireActivity().findViewById<FloatingActionButton>(R.id.add_floating_action_button)
fab.isVisible = false
}
fun formValidation(actionButton: Button, formFields: List<FormFieldText>, viewModel: BaseViewModel) = lifecycleScope.launch {
actionButton.isEnabled = false
// formFields.disable()
if (formFields.validate(validateAll = true)) {
viewModel.updateEntryAfterValidation()
viewModel.onValidatedAndUpdated()
} else {
viewModel._deactivateSuccess.value = false
}
// formFields.enable()
actionButton.isEnabled = true
}
fun initMaterialSpinnerData(spinner: Spinner, textEdit: TextInputEditText, listOfItems: LiveData<List<Spinnable>>, viewModelFunc: (item: Spinnable) -> Unit ) {
textEdit.setOnClickListener {
spinner.performClick()
}
val allItems = context?.let {
ArrayAdapter<Any>(it, android.R.layout.simple_dropdown_item_1line)
}
listOfItems
.observe(viewLifecycleOwner, { items ->
items?.forEach {
allItems?.add(it)
}
})
spinner.adapter = allItems
spinner.onItemSelectedListener = object : AdapterView.OnItemSelectedListener {
override fun onItemSelected(
parent: AdapterView<*>?,
view: View?,
position: Int,
id: Long
) {
val selectedItem = parent!!.adapter.getItem(position) as Spinnable
textEdit.setText(selectedItem.itemName())
viewModelFunc(selectedItem)
}
override fun onNothingSelected(parent: AdapterView<*>?) {
TODO("Not yet implemented")
}
}
}
// from https://github.com/Dhaval2404/ImagePicker
fun initImagePicking(iv: ImageView, ib: Button, viewModel: BaseViewModel, standardImageButton: Button? = null,
maxSize: Int = 1024, maxWidth: Int = 1080, maxHeight: Int = 1080, cropX: Float = 1F, cropY: Float = 1F) {
val startForProfileImageResult =
registerForActivityResult(ActivityResultContracts.StartActivityForResult()) { result: ActivityResult ->
val resultCode = result.resultCode
val data = result.data
if (resultCode == Activity.RESULT_OK) {
//Image Uri will not be null for RESULT_OK
val fileUri = data?.data!!
iv.setImageURI(fileUri)
Log.d(TAG,"URI of selected image: $fileUri")
val bitmap = iv.drawable.toBitmap()
viewModel.imageBitmap = bitmap
viewModel.defaultImage = false
ib.text = resources.getText(R.string.change_image_button)
var parentView = iv.parent
if ( parentView is TableRow) {
parentView = iv.parent as TableRow
parentView.isInvisible = false
}
if ( parentView is LinearLayout) {
parentView = iv.parent as LinearLayout
parentView.isInvisible = false
}
standardImageButton?.let {
it.isInvisible = false
}
} else if (resultCode == ImagePicker.RESULT_ERROR) {
Log.e(TAG, ImagePicker.getError(data))
Toast.makeText(this.requireContext(), ImagePicker.getError(data), Toast.LENGTH_SHORT).show()
} else {
Toast.makeText(this.requireContext(), resources.getText(R.string.image_picking_canceled), Toast.LENGTH_SHORT).show()
}
}
ib.setOnClickListener {
ImagePicker.with(this)
.compress(maxSize) //Final image size will be less than 1 MB(Optional)
.maxResultSize(maxWidth, maxHeight) //Final image resolution will be less than 1080 x 1080(Optional)
.crop(cropX,cropY)
.createIntent { intent ->
startForProfileImageResult.launch(intent)
}
}
}
private fun loadImage(imagePath: String): Bitmap? {
var bm: Bitmap? = null
if (imagePath.isNotBlank()) {
bm = getBitmap(imagePath)
}
return bm
}
private fun getBitmap(imagePath: String): Bitmap? {
val file = File(GlobalAppStore.appCtx!!.filesDir, imagePath)
return BitmapFactory.decodeFile(file.absolutePath)
}
fun setDeleteImageButton(deleteImageButton: MaterialButton, iv: ImageView, ivC: LinearLayout, buttonLoadPicture: MaterialButton, viewModel: BaseViewModel) {
deleteImageButton.setOnClickListener {
viewModel.imageBitmap = null
iv.setImageBitmap(null)
ivC.visibility = View.GONE
buttonLoadPicture.text = resources.getText(R.string.add_image_button)
buttonLoadPicture.setIconResource(R.drawable.addImageButtonIcon)
deleteImageButton.visibility = View.GONE
viewModel.defaultImage = true
}
}
protected fun initPDFFromStorage(pdfB: MaterialButton, pdfDeleteB: MaterialButton, pvC: LinearLayout, viewModel: BaseViewModel) {
val selectPDFFromStorageResult = registerForActivityResult(ActivityResultContracts.GetContent()) { uri: Uri? ->
uri?.let {
Log.d(TAG,"URI of selected PDF: $uri")
viewModel.setPdfUri(uri)
viewModel.pdfFileName = viewModel.getFilenameFromUri(uri)
pvC.isVisible = true
pdfB.text = getString(R.string.change_pdf_button)
pdfDeleteB.isVisible = true
setDeletePdfButton(pdfDeleteB,pvC,pdfB,viewModel)
}
}
pdfB.setOnClickListener {
selectPDFFromStorage(selectPDFFromStorageResult)
}
}
private fun selectPDFFromStorage(selectPDFFromStorageResult: ActivityResultLauncher<String>) = selectPDFFromStorageResult.launch("application/pdf")
private fun setDeletePdfButton(deletePdfButton: MaterialButton, pvC: LinearLayout, buttonAddPdf: MaterialButton, viewModel: BaseViewModel) {
deletePdfButton.setOnClickListener {
viewModel.setPdfUri(null)
pvC.visibility = View.GONE
buttonAddPdf.text = resources.getText(R.string.add_pdf_button)
deletePdfButton.visibility = View.GONE
}
}
fun setChangeImageButton(view: View, imagePath: String, viewModel: BaseViewModel) {
val iv = view.findViewById<ImageView>(R.id.imageView)
val ivC = view.findViewById<LinearLayout>(R.id.image_view_container)
val buttonLoadPicture = view.findViewById<MaterialButton>(R.id.buttonLoadPicture)
val buttonDefaultPicture = view.findViewById<Button>(R.id.buttonDefaultPicture)
viewModel.setOldImage( imagePath )
val bm = loadImage( imagePath )
if ( bm != null ) {
iv.setImageBitmap(bm)
ivC.isInvisible = false
buttonLoadPicture.text = resources.getText(R.string.change_image_button)
buttonLoadPicture.setIconResource(R.drawable.changeImageButtonIcon)
buttonDefaultPicture.isInvisible = false
viewModel.defaultImage = false
}
}
fun setChangePdfButton(view: View, pdfPath: String, viewModel: BaseViewModel, fileName: String) {
val pvC = view.findViewById<LinearLayout>(R.id.pdf_view_container)
val buttonAddPdf = view.findViewById<MaterialButton>(R.id.add_pdf_button)
val buttonDeletePdf = view.findViewById<MaterialButton>(R.id.delete_pdf_button)
viewModel.setOldPdf( pdfPath )
if ( pdfPath.isNotBlank() ) {
pvC.isInvisible = false
buttonAddPdf.text = resources.getText(R.string.change_pdf_button)
buttonDeletePdf.isInvisible = false
setDeletePdfButton(buttonDeletePdf,pvC,buttonAddPdf,viewModel)
val file = File(GlobalAppStore.appCtx!!.filesDir, pdfPath)
val fileUri = FileProvider.getUriForFile(GlobalAppStore.appCtx!!,"app.gedama.tutorial.cruddiary.provider",file)
if ( fileUri != null ) {
viewModel.pdfFileName = fileName
viewModel.setPdfUri(fileUri)
}
}
}
fun doSpeechRecognition(layoutEndIcon: TextInputLayout, textField: TextInputEditText ) {
val startForSpeechRecognitionResult =
registerForActivityResult(ActivityResultContracts.StartActivityForResult()) { result: ActivityResult ->
val resultCode = result.resultCode
val data = result.data
if (resultCode == Activity.RESULT_OK) {
val spokenText: String? =
data!!.getStringArrayListExtra(RecognizerIntent.EXTRA_RESULTS).let { results ->
results!![0]
}
spokenText?.let {
var newText: String = textField.text.toString()
if ( newText.isBlank() ) {
newText = it
} else {
newText += " " + it
}
Log.d(TAG,"Recognized text: $it")
textField.setText(newText)
}
} else {
Log.d(TAG,"Speech recogintion was not successful: $resultCode")
}
}
layoutEndIcon.setEndIconOnClickListener {
val intent = Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH).apply {
putExtra(RecognizerIntent.EXTRA_LANGUAGE_MODEL, RecognizerIntent.LANGUAGE_MODEL_FREE_FORM)
// from API level 33 on this should improve the formatting (capitalization, punctuation, etc.) of the recognized text
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
putExtra(
RecognizerIntent.EXTRA_ENABLE_FORMATTING,
RecognizerIntent.FORMATTING_OPTIMIZE_QUALITY
)
}
}
startForSpeechRecognitionResult.launch(intent)
}
}
}
Now we can define our view model:
21.5 UpdateDiaryEntryViewModel.kt
package app.gedama.tutorial.cruddiary.viewmodel
import android.util.Log
import androidx.databinding.ObservableField
import androidx.lifecycle.*
import app.gedama.tutorial.cruddiary.GlobalAppStore
import app.gedama.tutorial.cruddiary.dao.DiaryEntryDao
import app.gedama.tutorial.cruddiary.data.DiaryEntriesTagsCrossRef
import app.gedama.tutorial.cruddiary.data.DiaryEntry
import app.gedama.tutorial.cruddiary.data.DiaryEntryWithEverything
import app.gedama.tutorial.cruddiary.data.Person
import app.gedama.tutorial.cruddiary.data.Spinnable
import app.gedama.tutorial.cruddiary.data.Tag
import kotlinx.coroutines.launch
import java.util.*
class UpdateDiaryEntryViewModel(val diaryEntryId: Long, val diaryEntryDao: DiaryEntryDao) : BaseViewModel() {
val diaryEntry = diaryEntryDao.getDiaryEntryWithEverything(diaryEntryId)
val allPersons = diaryEntryDao.getAllPersons(0L)
val allTags = diaryEntryDao.getAllTags(1L)
var relevance = DiaryEntry().relevance
var relevanceDataBindingVariable =
object: ObservableField<String>(relevance.toString()) {
override fun set(value: String?) {
super.set(value)
// a value has been set
relevance = value?.toIntOrNull() ?: relevance
}
}
private val _selectedTags = MutableLiveData<Set<Tag>>(mutableSetOf())
val selectedTags: LiveData<Set<Tag>>
get() = _selectedTags
private val _selectableTags = MutableLiveData<Set<Tag>>(mutableSetOf())
val selectableTags: LiveData<Set<Tag>>
get() = _selectableTags
private val _entryDate = MutableLiveData<Date>()
val entryDate: LiveData<Date>
get() = _entryDate
val allPersonsAndDiaryEntryLiveData: LiveData<Pair<List<Person>, DiaryEntryWithEverything>> =
object: MediatorLiveData<Pair<List<Person>, DiaryEntryWithEverything>>() {
var allP: List<Person>? = null
var diEent: DiaryEntryWithEverything? = null
init {
addSource( allPersons ) { allP ->
this.allP = allP
diEent?.let { value = allP to it }
}
addSource(diaryEntry) { diaryEntry ->
this.diEent = diaryEntry
allP?.let { value = it to diaryEntry }
}
}
}
val allTagsAndDiaryEntryLiveData: LiveData<Pair<List<Tag>, DiaryEntryWithEverything>> =
object: MediatorLiveData<Pair<List<Tag>, DiaryEntryWithEverything>>() {
var allP: List<Tag>? = null
var diEent: DiaryEntryWithEverything? = null
init {
addSource( allTags ) { allP ->
this.allP = allP
diEent?.let { value = allP to it }
}
addSource(diaryEntry) { diaryEntry ->
this.diEent = diaryEntry
allP?.let { value = it to diaryEntry }
}
}
}
fun updateDiaryEntry() {
_doValidation.value = true
}
override fun updateEntryAfterValidation() {
viewModelScope.launch {
if ( deactivateSuccess.value!! || diaryEntry.value!!.entry.inactive ) {
diaryEntry.value!!.entry.inactive = true
} else {
diaryEntry.value!!.entry.inactive = false
}
val newImagePath = checkNewImagePath("diary_entry_")
newImagePath?.let {
diaryEntry.value!!.entry.imagePath = it
}
val newPdfPath = checkNewPdfPath("pdf_")
newPdfPath?.let {
if ( it.isNotBlank() ) {
diaryEntry.value!!.entry.pdfFileName = getFilenameFromUri(pdfUri.value!!)
diaryEntry.value!!.entry.pdfPath = it
} else {
diaryEntry.value!!.entry.pdfFileName = ""
diaryEntry.value!!.entry.pdfPath = ""
}
}
diaryEntryDao.update(diaryEntry.value!!.entry)
// simply delete all entries in cross reference table
diaryEntryDao.deleteAllTagsForEntry(diaryEntryId)
val selTagList = selectedTags.value
if ( selTagList != null && selTagList.isNotEmpty() ) {
selTagList.forEach {
val diaryEntryPair = DiaryEntriesTagsCrossRef(diaryEntryId,it.tagId)
diaryEntryDao.insertDiaryEntryTag(diaryEntryPair)
}
}
else {
// if no tag is assigned, insert dummy tag (---) so that filtering works
val entryTagPair = DiaryEntriesTagsCrossRef(diaryEntryId,1L)
diaryEntryDao.insertDiaryEntryTag(entryTagPair)
}
_navigateToList.value = true
}
}
fun updateDiaryPerson(item: Spinnable) {
diaryEntry.value!!.entry.personId = item.itemId()
}
override fun updateEntryDate(date: Date) {
_entryDate.value = date
diaryEntry.value!!.entry.date = date
}
fun setSelectedTag(tag: Tag) {
_selectedTags.postValue(selectedTags.value!!.plus(tag))
_selectableTags.postValue(selectableTags.value!!.minus(tag))
Log.d(TAG,"Tag ${tag.title} was selected ...")
Log.d(TAG,"Selected tags: ${selectedTags.value}")
}
fun deSelectTag(tag: Tag) {
_selectedTags.postValue(selectedTags.value!!.minus(tag))
_selectableTags.postValue(selectableTags.value!!.plus(tag))
Log.d(TAG,"Tag ${tag.title} was deselected ...")
Log.d(TAG,"Selected tags: ${selectedTags.value}")
}
fun setSelectableTags(set: Set<Tag>) {
_selectableTags.postValue(set)
}
fun setSelectedTags(set: Set<Tag>) {
// if dummy tag (---) is set, remove it
val dummyReducedSet = set.filter{ it.tagId != 1L }.toSet()
_selectedTags.postValue(dummyReducedSet)
}
fun deactivateDiaryEntry() {
_deactivateSuccess.value = true
_doValidation.value = true
}
}
class UpdateDiaryEntryViewModelFactory(private val diaryEntryId: Long, private val diaryEntryDao: DiaryEntryDao) : ViewModelProvider.Factory {
override fun <T : ViewModel> create(modelClass: Class<T>): T {
if (modelClass.isAssignableFrom(UpdateDiaryEntryViewModel::class.java)) {
return UpdateDiaryEntryViewModel(diaryEntryId, diaryEntryDao) as T
}
throw java.lang.IllegalArgumentException("Unknown ViewModel")
}
}
Next we define the layout for our new fragment.
21.6 fragment_update_diary_entry.xml
<?xml version="1.0" encoding="utf-8"?>
<layout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:app="http://schemas.android.com/apk/res-auto"
tools:context="app.gedama.tutorial.cruddiary.framgent.UpdateDiaryEntryFragment">
<data>
<variable
name="viewModel"
type="app.gedama.tutorial.cruddiary.viewmodel.UpdateDiaryEntryViewModel" />
</data>
<ScrollView
android:layout_width="match_parent"
android:layout_height="match_parent">
<androidx.appcompat.widget.LinearLayoutCompat
style="@style/CrudDiary_LinearLayoutCompat">
<include
android:id="@+id/title_text_field_binding"
app:viewModelValue="@={viewModel.diaryEntry.entry.title}"
app:textHint="@{@string/diary_title_label}"
layout="@layout/text_input_title" />
<include
android:id="@+id/date_text_field_binding"
app:hintText="@{@string/date_label}"
app:viewModelValue="@={viewModel.diaryEntry.entry.dateAsString}"
layout="@layout/text_input_date" />
<include
android:id="@+id/text_text_field_binding"
app:viewModelValue="@={viewModel.diaryEntry.entry.text}"
app:hintText="@{@string/text_label}"
layout="@layout/text_input_diary_text" />
<include
android:id="@+id/spinner_persons_binding"
app:textHint="@{@string/person_label}"
layout="@layout/spinner_generic" />
<include
android:id="@+id/relevance_text_field_binding"
app:textInputFormat="@{android.text.InputType.TYPE_CLASS_NUMBER|android.text.InputType.TYPE_NUMBER_FLAG_SIGNED}"
app:viewModelValue="@={viewModel.relevanceDataBindingVariable}"
app:textHint="@{@string/relevance_label}"
app:possibleDigits="@{@string/possible_digits}"
layout="@layout/text_input_generic" />
<LinearLayout
android:id="@+id/tags_area"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="vertical"
android:visibility="gone">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="start"
android:padding="8dp"
android:text="@string/tags_label"
android:textSize="16sp" />
<com.google.android.flexbox.FlexboxLayout
android:id="@+id/chip_area"
android:layout_width="match_parent"
android:layout_height="wrap_content"
app:flexWrap="wrap"
app:alignItems="stretch"
app:alignContent="stretch" />
</LinearLayout>
<com.google.android.material.button.MaterialButton
android:id="@+id/add_tag_button"
style="@style/CrudDiary_Button.AddTag"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:text="@string/add_tag_button" />
<include
android:id="@+id/pdf_area_binding"
app:viewModelValue="@={viewModel.diaryEntry.entry.pdfFileName}"
app:hintText="@{@string/pdf_label}"
layout="@layout/pdf_area" />
<include
android:id="@+id/check_box_binding"
app:viewModelValue="@={viewModel.diaryEntry.entry.inactive}"
layout="@layout/checkbox_inactive" />
<include
android:id="@+id/image_area_binding"
layout="@layout/image_area" />
<include
app:viewModelFunc="@{ () -> viewModel.updateDiaryEntry() }"
android:id="@+id/crud_buttons"
app:visibility="@{android.view.View.VISIBLE}"
layout="@layout/crud_buttons" />
</androidx.appcompat.widget.LinearLayoutCompat>
</ScrollView>
</layout>
Notice the similarity of this file to the one we used for adding new diary entries! Next we want to extend our navigation graph with our new fragment:
21.7 nav_graph.xml
<?xml version="1.0" encoding="utf-8"?>
<navigation xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/nav_graph"
app:startDestination="@id/homeFragment">
<fragment
android:id="@+id/homeFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.HomeFragment"
android:label="@string/main_menu_title" >
<action
android:id="@+id/action_homeFragment_to_gendersListFragment"
app:destination="@id/gendersListFragment" />
<action
android:id="@+id/action_homeFragment_to_personsListFragment"
app:destination="@id/personsListFragment" />
<action
android:id="@+id/action_homeFragment_to_tagsListFragment"
app:destination="@id/tagsListFragment" />
<action
android:id="@+id/action_homeFragment_to_diaryEntriesListFragment"
app:destination="@id/diaryEntriesListFragment" />
</fragment>
<fragment
android:id="@+id/gendersListFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.GendersListFragment"
android:label="@string/genders_list_menu_title"
tools:layout="@layout/fragment_genders_list" >
<action
android:id="@+id/action_gendersListFragment_to_homeFragment"
app:destination="@id/homeFragment" />
<action
android:id="@+id/action_gendersListFragment_to_addGenderFragment"
app:destination="@id/addGenderFragment" />
<action
android:id="@+id/action_gendersListFragment_to_updateGenderFragment"
app:destination="@id/updateGenderFragment" />
</fragment>
<fragment
android:id="@+id/addGenderFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.AddGenderFragment"
android:label="@string/genders_add_menu_title" >
<action
android:id="@+id/action_addGenderFragment_to_gendersListFragment"
app:destination="@id/gendersListFragment"
app:popUpTo="@id/homeFragment" />
</fragment>
<fragment
android:id="@+id/updateGenderFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.UpdateGenderFragment"
android:label="@string/genders_update_menu_title" >
<action
android:id="@+id/action_updateGenderFragment_to_gendersListFragment"
app:destination="@id/gendersListFragment"
app:popUpTo="@id/homeFragment" />
<argument
android:name="genderId"
app:argType="long" />
</fragment>
<fragment
android:id="@+id/personsListFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.PersonsListFragment"
android:label="@string/persons_list_menu_title"
tools:layout="@layout/fragment_persons_list" >
<action
android:id="@+id/action_personsListFragment_to_homeFragment"
app:destination="@id/homeFragment" />
<action
android:id="@+id/action_personsListFragment_to_addPersonFragment"
app:destination="@id/addPersonFragment" />
<action
android:id="@+id/action_personsListFragment_to_updatePersonFragment"
app:destination="@id/updatePersonFragment" />
</fragment>
<fragment
android:id="@+id/addPersonFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.AddPersonFragment"
android:label="@string/persons_add_menu_title" >
<action
android:id="@+id/action_addPersonFragment_to_personsListFragment"
app:destination="@id/personsListFragment"
app:popUpTo="@id/homeFragment" />
</fragment>
<fragment
android:id="@+id/updatePersonFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.UpdatePersonFragment"
android:label="@string/persons_update_menu_title" >
<action
android:id="@+id/action_updatePersonFragment_to_personsListFragment"
app:destination="@id/personsListFragment"
app:popUpTo="@id/homeFragment" />
<argument
android:name="personId"
app:argType="long" />
</fragment>
<fragment
android:id="@+id/tagsListFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.TagsListFragment"
android:label="@string/tags_list_menu_title" >
<action
android:id="@+id/action_tagsListFragment_to_homeFragment"
app:destination="@id/homeFragment" />
<action
android:id="@+id/action_tagsListFragment_to_addTagFragment"
app:destination="@id/addTagFragment" />
<action
android:id="@+id/action_tagsListFragment_to_updateTagFragment"
app:destination="@id/updateTagFragment" />
</fragment>
<fragment
android:id="@+id/addTagFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.AddTagFragment"
android:label="@string/tags_add_menu_title" >
<action
android:id="@+id/action_addTagFragment_to_tagsListFragment"
app:destination="@id/tagsListFragment"
app:popUpTo="@id/homeFragment" />
</fragment>
<fragment
android:id="@+id/updateTagFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.UpdateTagFragment"
android:label="@string/tags_edit_menu_title" >
<action
android:id="@+id/action_updateTagFragment_to_tagsListFragment"
app:destination="@id/tagsListFragment"
app:popUpTo="@id/homeFragment" />
<argument
android:name="tagId"
app:argType="long" />
</fragment>
<fragment
android:id="@+id/updatePreferencesFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.UpdatePreferencesFragment"
android:label="@string/preferences_menu_title" >
<action
android:id="@+id/action_updatePreferencesFragment_to_homeFragment"
app:destination="@id/homeFragment"
app:popUpTo="@id/homeFragment"
app:popUpToInclusive="true" />
</fragment>
<fragment
android:id="@+id/diaryEntriesListFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.DiaryEntriesListFragment"
android:label="@string/diary_entries_list_menu_title"
tools:layout="@layout/fragment_diary_entries_list" >
<action
android:id="@+id/action_diaryEntriesListFragment_to_homeFragment"
app:destination="@id/homeFragment" />
<action
android:id="@+id/action_diaryEntriesListFragment_to_addDiaryEntryFragment"
app:destination="@id/addDiaryEntryFragment" />
<action
android:id="@+id/action_diaryEntriesListFragment_to_updateDiaryEntryFragment"
app:destination="@id/updateDiaryEntryFragment" />
</fragment>
<fragment
android:id="@+id/addDiaryEntryFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.AddDiaryEntryFragment"
android:label="@string/diary_entries_add_menu_title" >
<action
android:id="@+id/action_addDiaryEntryFragment_to_diaryEntriesListFragment"
app:destination="@id/diaryEntriesListFragment"
app:popUpTo="@id/homeFragment" />
</fragment>
<fragment
android:id="@+id/updateDiaryEntryFragment"
android:name="app.gedama.tutorial.cruddiary.fragment.UpdateDiaryEntryFragment"
android:label="@string/diary_entries_edit_menu_title" >
<action
android:id="@+id/action_updateDiaryEntryFragment_to_diaryEntriesListFragment"
app:destination="@id/diaryEntriesListFragment"
app:popUpTo="@id/homeFragment" />
<argument
android:name="diaryEntryId"
app:argType="long" />
</fragment>
</navigation>
Note that we added the argument diaryEntryId to our new fragment because we have to pass the ID so we know which diary entry item gets updated. Now it is time to present our UpdateDiaryEntryFragment class:
21.8 UpdateDiaryEntryFragment.kt
package app.gedama.tutorial.cruddiary.fragment
import android.app.DatePickerDialog
import android.app.Dialog
import android.content.Intent
import android.os.Bundle
import android.util.Log
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import android.widget.TextView
import androidx.appcompat.widget.SearchView
import androidx.core.content.FileProvider
import androidx.core.view.isVisible
import androidx.lifecycle.*
import androidx.lifecycle.Observer
import androidx.navigation.findNavController
import androidx.recyclerview.widget.RecyclerView
import app.gedama.tutorial.cruddiary.R
import app.gedama.tutorial.cruddiary.adapter.TagItemAdapter
import app.gedama.tutorial.cruddiary.data.DiaryEntryWithEverything
import app.gedama.tutorial.cruddiary.data.Spinnable
import app.gedama.tutorial.cruddiary.data.Tag
import app.gedama.tutorial.cruddiary.data.Validation
import app.gedama.tutorial.cruddiary.database.CrudDiaryDatabase
import app.gedama.tutorial.cruddiary.databinding.FragmentUpdateDiaryEntryBinding
import app.gedama.tutorial.cruddiary.ui.LambdaDatePicker
import app.gedama.tutorial.cruddiary.ui.formfields.FormFieldText
import app.gedama.tutorial.cruddiary.viewmodel.UpdateDiaryEntryViewModel
import app.gedama.tutorial.cruddiary.viewmodel.UpdateDiaryEntryViewModelFactory
import com.google.android.material.chip.Chip
import java.io.File
import java.text.DateFormat
import java.util.*
class UpdateDiaryEntryFragment: BaseFragment() {
private var _binding: FragmentUpdateDiaryEntryBinding? = null
private val binding get() = _binding!!
private var diaryEntry: DiaryEntryWithEverything? = null
override fun onCreateView(
inflater: LayoutInflater, container: ViewGroup?,
savedInstanceState: Bundle?
): View {
_binding = FragmentUpdateDiaryEntryBinding.inflate(inflater, container, false)
val view = binding.root
val diaryEntryId = UpdateDiaryEntryFragmentArgs.fromBundle(requireArguments()).diaryEntryId
val application = requireNotNull(this.activity).application
val diaryEntryDao = CrudDiaryDatabase.getInstance(application).diaryEntryDao
val viewModelFactory = UpdateDiaryEntryViewModelFactory(diaryEntryId,diaryEntryDao)
val viewModel = ViewModelProvider(this, viewModelFactory)[UpdateDiaryEntryViewModel::class.java]
binding.viewModel = viewModel
binding.lifecycleOwner = viewLifecycleOwner
// form validation, see https://medium.com/@asissuthar/simplify-form-validation-using-kotlin-flow-on-android-16c718e3efaa
val fieldTitle = FormFieldText(
scope = lifecycleScope,
textInputLayout = binding.titleTextFieldBinding.titleLayout,
textInputEditText = binding.titleTextFieldBinding.title,
Validation.titleValidation
)
val fieldText = FormFieldText(
scope = lifecycleScope,
textInputLayout = binding.textTextFieldBinding.diaryTextLayout,
textInputEditText = binding.textTextFieldBinding.diaryText,
Validation.textValidation
)
val fieldPerson = FormFieldText(
scope = lifecycleScope,
textInputLayout = binding.spinnerPersonsBinding.spinnerInputLayoutId,
textInputEditText = binding.spinnerPersonsBinding.spinnerTextId,
Validation.personValidation
)
val fieldRelevance = FormFieldText(
scope = lifecycleScope,
textInputLayout = binding.relevanceTextFieldBinding.textInputLayout,
textInputEditText = binding.relevanceTextFieldBinding.textInputEditText,
Validation.relevanceValidation
)
val formFields = listOf(fieldTitle,fieldText,fieldPerson,fieldRelevance)
initImagePicking(binding.imageAreaBinding.imageView, binding.imageAreaBinding.buttonLoadPicture,viewModel, binding.imageAreaBinding.buttonDefaultPicture)
saveToUpdateButton(binding.crudButtons.actionButton)
val dialogBox = Dialog(this.requireContext())
val adapter = TagItemAdapter { tag ->
viewModel.setSelectedTag(tag)
dialogBox.cancel()
}
viewModel.allTags.observe(viewLifecycleOwner, Observer {
it?.let {
val mutList = mutableListOf<Tag>()
mutList.addAll(it.toList())
adapter.setData(mutList)
viewModel.setSelectableTags(it.toSet())
}
})
viewModel.pdfUri.observe(viewLifecycleOwner, { pdfUri ->
if ( pdfUri != null ) {
binding.pdfAreaBinding.pdfFileName.setText(viewModel.pdfFileName)
binding.pdfAreaBinding.pdfLayout.setEndIconOnClickListener {
val intent = Intent(Intent.ACTION_VIEW).apply {
addFlags(Intent.FLAG_ACTIVITY_NEW_TASK)
addFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION)
setDataAndType(pdfUri, "application/pdf")
}
this.requireContext()
.startActivity(Intent.createChooser(intent, getString(R.string.select_app)))
}
}
})
// when a tag is added to the diary entry, the list of selectable tags
// has to be reduced by this added tag and the adapter has to be updated correspondingly
viewModel.selectableTags.observe(viewLifecycleOwner, Observer {
Log.d(TAG, "selectableTags was changed ...")
it?.let {
Log.d(TAG, "New selectable tag list: $it")
val mutList = mutableListOf<Tag>()
mutList.addAll(it.toList())
adapter.setData(mutList)
}
})
viewModel.selectedTags.observe(viewLifecycleOwner, Observer {
Log.d(TAG, "selectedTags was changed ...")
it?.let {
Log.d(TAG, "New selected tag list: $it")
if ( it.isNotEmpty() ) {
binding.tagsArea.isVisible = true
binding.chipArea.removeAllViews()
it.forEach { tag ->
val chip = Chip(this.requireContext())
chip.text = tag.title
chip.isCloseIconVisible = true
chip.setOnClickListener { view ->
viewModel.deSelectTag(tag)
binding.chipArea.removeView(view)
}
binding.chipArea.addView(chip)
}
} else {
binding.tagsArea.visibility = View.GONE
}
}
})
viewModel.navigateToList.observe(viewLifecycleOwner, Observer { navigate ->
if (navigate) {
view.findNavController()
.navigate(R.id.action_updateDiaryEntryFragment_to_diaryEntriesListFragment)
viewModel.onNavigatedToList()
}
})
viewModel.diaryEntry.observe(viewLifecycleOwner, Observer { item ->
diaryEntry = item
setChangeImageButton(view, item.entry.imagePath, viewModel)
setChangePdfButton(view, item.entry.pdfPath, viewModel, item.entry.pdfFileName)
setInactivityButton(item.entry.inactive,binding.crudButtons.deactivateButton,binding.checkBoxBinding.checkBoxInactive)
})
viewModel.doValidation.observe(viewLifecycleOwner, Observer { doValidate ->
if (doValidate) {
formValidation(binding.crudButtons.actionButton, formFields, viewModel)
}
})
viewModel.entryDate.observe(viewLifecycleOwner, Observer { item ->
binding.dateTextFieldBinding.date.setText(DateFormat.getDateInstance(DateFormat.MEDIUM).format(item))
})
val handleIconClick = object : View.OnClickListener {
override fun onClick(v: View?) {
val picker = LambdaDatePicker(context = context!!, showTimePicker = false, { item: Date -> viewModel.updateEntryDate(item) })
val currentEntryDate = Calendar.getInstance()
diaryEntry?.entry?.date?.let {
currentEntryDate.time = diaryEntry!!.entry.date
}
val datePickerDialog =
DatePickerDialog(
context!!,
picker,
currentEntryDate.get(Calendar.YEAR),
currentEntryDate.get(
Calendar.MONTH
),
currentEntryDate.get(Calendar.DAY_OF_MONTH)
)
datePickerDialog.datePicker.maxDate = Date().time
datePickerDialog.show()
}
}
binding.dateTextFieldBinding.date.setOnClickListener(handleIconClick)
binding.dateTextFieldBinding.dateLayout.setEndIconOnClickListener(handleIconClick)
doSpeechRecognition(binding.textTextFieldBinding.diaryTextLayout, binding.textTextFieldBinding.diaryText)
@Suppress("UNCHECKED_CAST")
initMaterialSpinnerData(binding.spinnerPersonsBinding.spinnerId,binding.spinnerPersonsBinding.spinnerTextId,
viewModel.allPersons as LiveData<List<Spinnable>>,{ item: Spinnable -> viewModel.updateDiaryPerson(item)} )
viewModel.allPersonsAndDiaryEntryLiveData.observe(viewLifecycleOwner, Observer { (allP,diaEnt) ->
val currentPersonId = diaEnt.person.personId ?: 1L
val currentPerson = allP.find{ it.personId == currentPersonId }
val currentPersonPos = allP.indexOf(currentPerson)
binding.spinnerPersonsBinding.spinnerId.setSelection(currentPersonPos)
} )
viewModel.allTagsAndDiaryEntryLiveData.observe(viewLifecycleOwner, Observer { (allT,dewt) ->
dewt.let { diaryEntryWithTags ->
viewModel.setSelectedTags(diaryEntryWithTags.tags.filter{!it.inactive}.toSet())
val difference = allT.minus(dewt.tags.toSet())
val mutList = mutableListOf<Tag>()
mutList.addAll(difference)
adapter.setData(mutList)
viewModel.setSelectableTags(difference.toSet())
}
})
// see https://github.com/zinedineBenkhider/android-tutos/blob/main/CustomizedDialogBox/app/src/main/java/com/example/customizeddialogbox/MainActivity.kt
val tagButton = binding.addTagButton
tagButton.setOnClickListener {
dialogBox.setContentView(R.layout.dialog_select_tag)
val searchView = dialogBox.findViewById<SearchView>(R.id.searchView)
val sac = searchView.findViewById<SearchView.SearchAutoComplete>(androidx.appcompat.R.id.search_src_text)
sac.setHint(resources.getString(R.string.search_view_hint))
val headline = dialogBox.findViewById<TextView>(R.id.tags_headline)
val listSize = adapter.itemCount
if ( listSize < 1 && viewModel.selectedTags.value!!.isEmpty() ) {
headline.text = getString(R.string.no_tags_available)
} else if ( listSize < 1 && viewModel.selectedTags.value!!.size > 0 ) {
headline.text = getString(R.string.no_further_tags_available)
}
val tagRV = dialogBox.findViewById<RecyclerView>(R.id.tags_list)
tagRV.adapter = adapter
searchView.setOnQueryTextListener(object: SearchView.OnQueryTextListener {
override fun onQueryTextSubmit(p0: String?): Boolean {
adapter.filter.filter(p0)
return false
}
override fun onQueryTextChange(p0: String?): Boolean {
adapter.filter.filter(p0)
return false
}
})
dialogBox.show()
}
setDeactivateButton(binding.crudButtons.deactivateButton, { viewModel.deactivateDiaryEntry() } )
setDeleteImageButton(binding.imageAreaBinding.buttonDefaultPicture,binding.imageAreaBinding.imageView,
binding.imageAreaBinding.imageViewContainer,binding.imageAreaBinding.buttonLoadPicture, viewModel)
val pdfButton = binding.pdfAreaBinding.addPdfButton
val pdfDeleteButton = binding.pdfAreaBinding.deletePdfButton
val pdfViewContainer = binding.pdfAreaBinding.pdfViewContainer
initPDFFromStorage(pdfButton, pdfDeleteButton, pdfViewContainer, viewModel)
return view
}
override fun onDestroyView() {
super.onDestroyView()
_binding = null
}
}
Once again, for getting from the diary entries list page to the ’Update diary entry’ page, we have to extend our existing DiaryEntriesListFragment:
21.9 PersonsListFragment.kt
...
viewModel.navigateToAddItem.observe(viewLifecycleOwner, { navigate ->
if (navigate) {
val action = DiaryEntriesListFragmentDirections
.actionDiaryEntriesListFragmentToAddDiaryEntryFragment()
this.findNavController().navigate(action)
viewModel.onItemAddNavigated()
}
})
viewModel.navigateToEditItem.observe(viewLifecycleOwner, { diaryEntryId ->
diaryEntryId?.let {
val action = DiaryEntriesListFragmentDirections
.actionDiaryEntriesListFragmentToUpdateDiaryEntryFragment(diaryEntryId)
this.findNavController().navigate(action)
viewModel.onItemEditNavigated()
}
})
return view
...
With all these new files and extensions of existing files, the code should now rebuild and run on a (virtual) device. If you tap on one of the items in the diary entries list, you get to the input mask for updating the selected diary entry (see Figure 21.1). Notice the image buttons below Lucy’s picture: We have a ’Change image’ button and a ’Delete image’ button.
